MOCVDS Limited

Company

MOCVDS Limited is an innovative technology company based in Hong Kong, specializing in the development of cutting-edge semiconductor materials. Our flagship product, the Boron-Doped Diamond (BDD) Wafer, is revolutionizing the semiconductor industry with its unmatched durability, exceptional thermal properties, and unique quantum capabilities.

Description

MOCVDS Limited is a Hong Kong-based technology company specializing in advanced semiconductor materials, particularly our innovative Boron-Doped Diamond (BDD) Wafers. Leveraging cutting-edge Chemical Vapor Deposition (CVD) technology, we deliver high-performance solutions ideal for electronics, optoelectronics, and quantum technologies. Our mission is to drive industry transformation by providing durable and efficient materials that push the boundaries of what's possible.

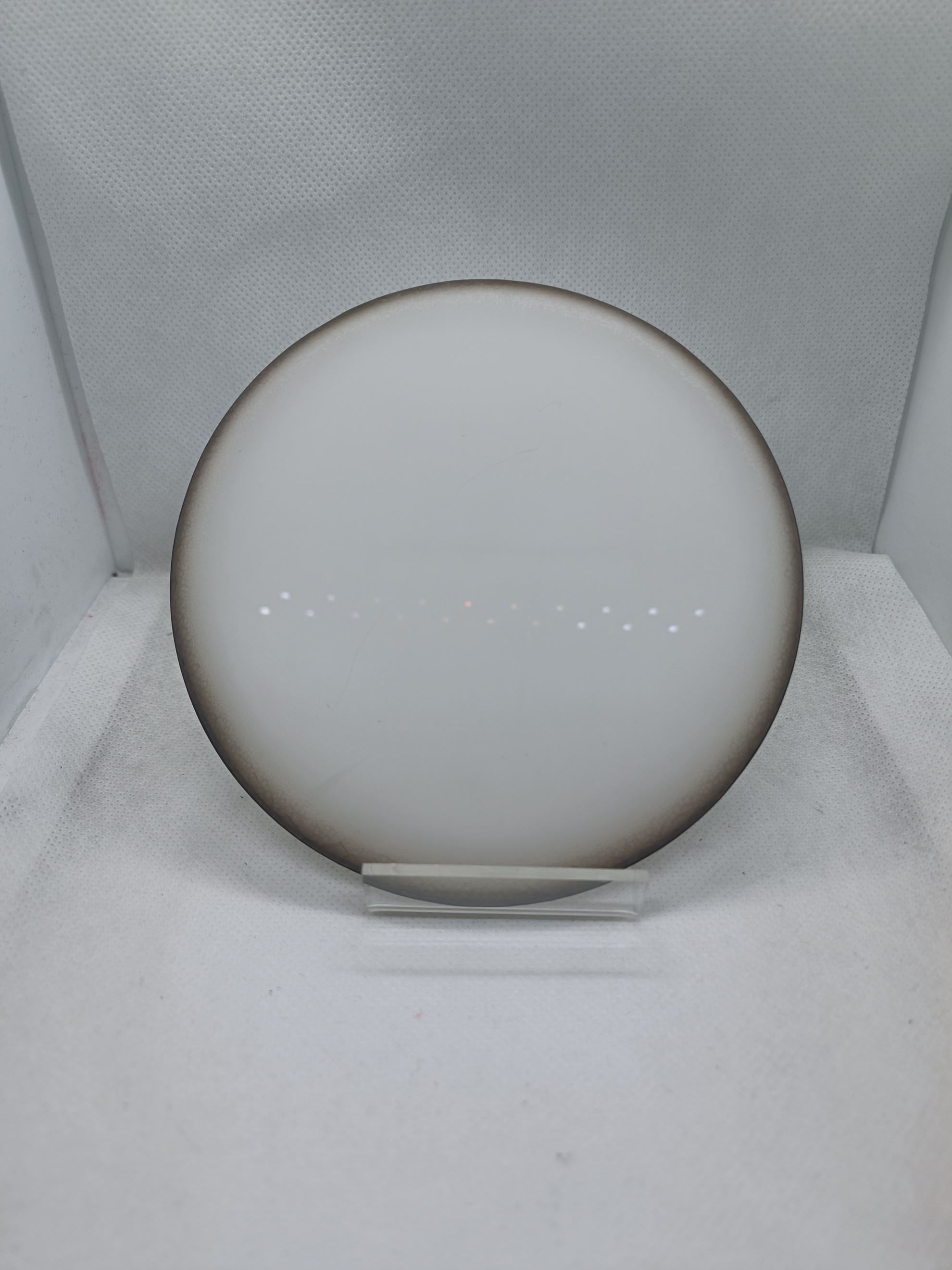

MOCVDS LimitedProductImg1823bda76-8306-ed11-82e5-6045bd1c588d_ProductImage1_19112024

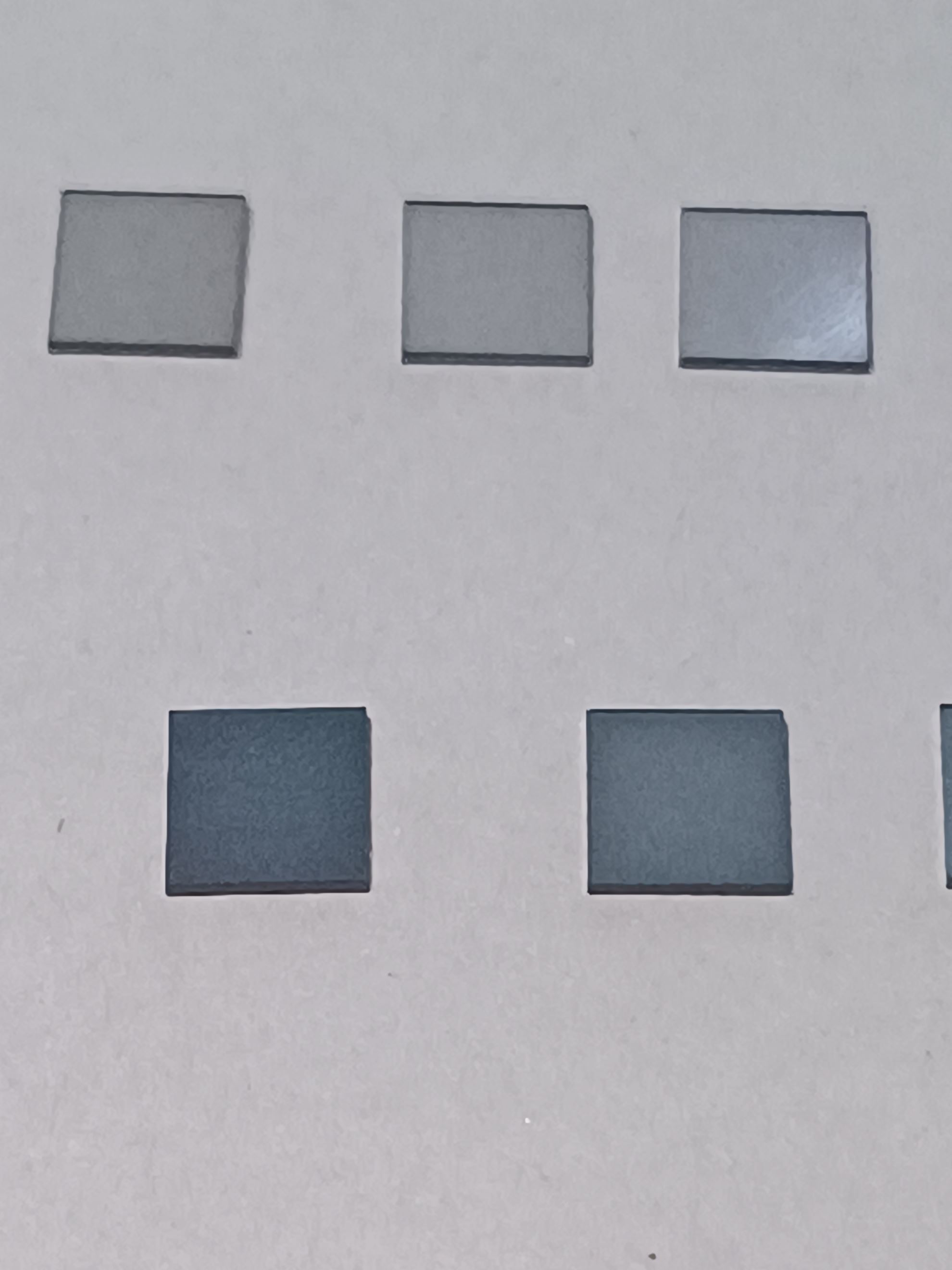

MOCVDS LimitedProductImg2823bda76-8306-ed11-82e5-6045bd1c588d_ProductImage2_19112024

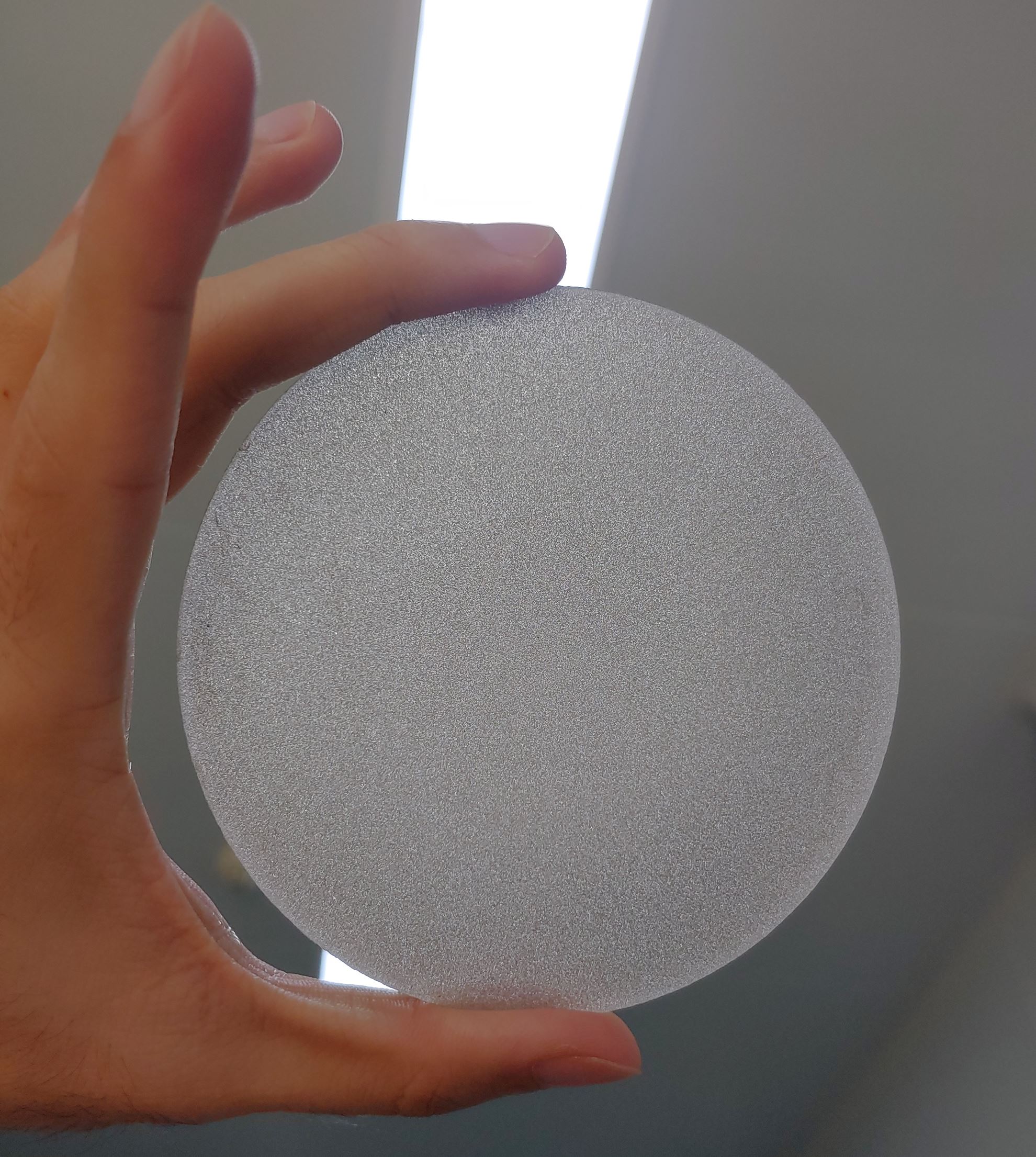

MOCVDS LimitedProductImg3823bda76-8306-ed11-82e5-6045bd1c588d_ProductImage3_19112024

Product Description: Boron-Doped Diamond (BDD) Wafer
The Boron-Doped Diamond (BDD) Wafer is an advanced semiconductor material designed to meet the demanding requirements of modern electronics and quantum technologies. Engineered using state-of-the-art Chemical Vapor Deposition (CVD) techniques, this wafer offers a unique combination of exceptional properties that set it apart from traditional semiconductor materials.

Key Features:

Superior Durability: The BDD Wafer exhibits remarkable resilience, making it suitable for extreme environments, including high temperatures and high voltages. Its robust structure ensures longevity and reliability in critical applications.
Exceptional Thermal Conductivity: With outstanding thermal management capabilities, the BDD Wafer efficiently dissipates heat, enhancing performance in high-power devices and ensuring stable operation under demanding conditions.
Quantum Capabilities: The incorporation of nitrogen-vacancy (NV) centers enables the BDD Wafer to facilitate breakthroughs in quantum sensing and computing, making it a key player in the emerging field of quantum technologies.
Wide Bandgap Semiconductor: The BDD Wafer's wide bandgap properties provide excellent electrical insulation, minimizing leakage currents and improving efficiency in electronic devices.
UV Sensitivity: Its sensitivity to ultraviolet light allows for applications in optoelectronics, such as UV sources and photodetectors, catering to a variety of industrial needs.
Applications:

The BDD Wafer is ideal for a range of applications, including:

Power Electronics: Enhancing performance in high-voltage and high-frequency devices.
Optoelectronics: Supporting the development of high-power UV devices for sterilization and photodetection.
Quantum Technologies: Enabling ultra-sensitive quantum sensors and advanced computing solutions.
Aerospace and Defense: Providing reliable materials for applications in extreme conditions.
MOCVDS Limited's Boron-Doped Diamond Wafer represents the future of semiconductor technology, driving innovation and performance across multiple industries.

Technology

Boron-Doped Diamond (BDD) Wafer:
A cutting-edge semiconductor material known for its exceptional durability, high thermal conductivity, and unique quantum properties. BDD Wafers are ideal for high-voltage and high-power applications.
Chemical Vapor Deposition (CVD):
Our advanced CVD technology enables the precise production of large-size BDD Wafers. This manufacturing process ensures reliability and consistency, meeting the stringent requirements of modern semiconductor applications.
Quantum Properties:
Incorporating nitrogen-vacancy (NV) centers, our BDD Wafers facilitate advancements in quantum sensing, computing, and communication, positioning us at the forefront of next-generation technologies.
Services:

Custom Material Development:
We offer tailored solutions to meet specific client needs in various sectors, including electronics, optoelectronics, and quantum technologies.
Technical Consultation:
Our team provides expert guidance on the integration and application of BDD Wafers in customer projects, ensuring optimal performance and innovation.
Research and Development:
MOCVDS Limited is committed to ongoing R&D, collaborating with academic and industry partners to enhance our technologies and expand their applications.
Support for Industry Collaboration:
We facilitate partnerships with research institutions and universities, fostering innovation and driving advancements in semiconductor technology.
